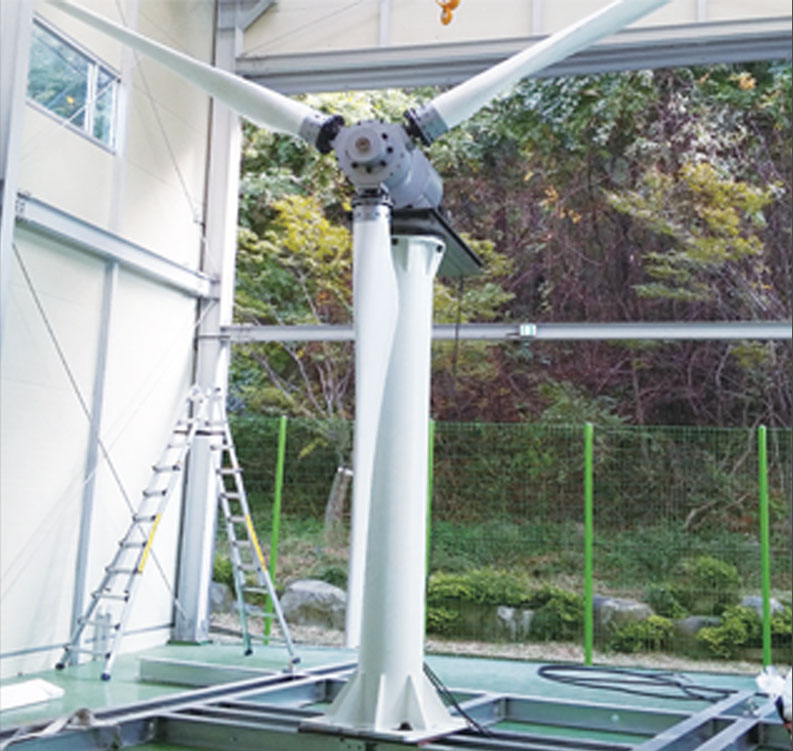

20kW Wind Power Generator
Technological Specification
| Item | Specification |
| Rated output | 20kW(450rpm) |
| Maneuver wind speed | 4m/s |
| Rated wind speed | 12.7m/s |
| Pitch control error range | ±0.273° |
| Pitch control angle | -5°~88° |
| Noise level(Rated wind speed) |
72.6dB |
| Signal | Grid connected type |
Features
- Designed pitch control system applying hinge type to secure stable power in the rated output
- Shaft connected at the control cylinder moves and then activated pitch angle regulate starts the hinge
- Operate by spinning the blade arm with the specified pitch angle
