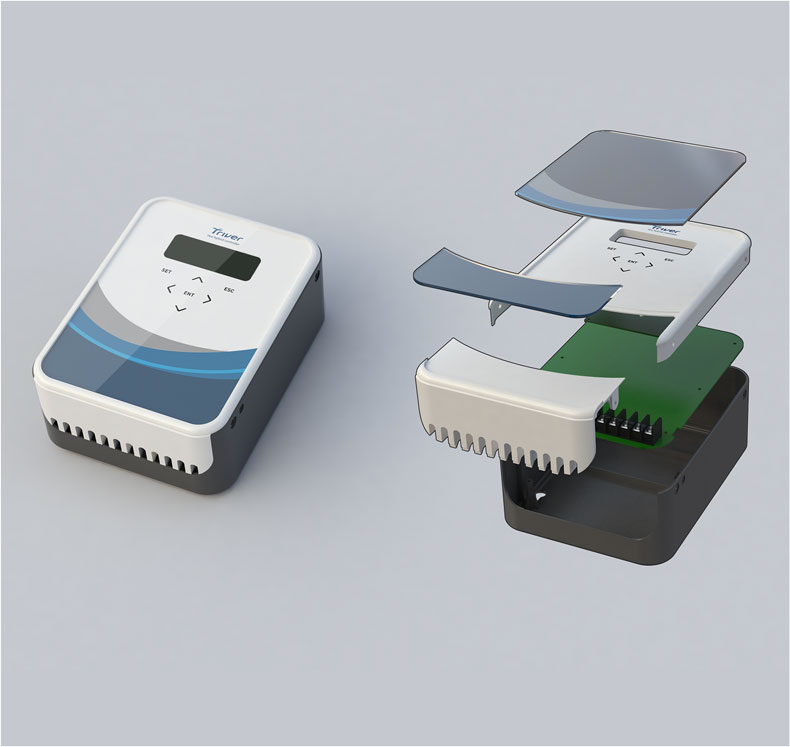

HYBRID CONTROLLER

PORTABLE SOLAR
POWER PLANT

Independent Hybrid Generator that is chargeable anywhere with the sun and wind

Item		Specification
Input	Wind power generator	600W
	Photovoltaic generator	400W
Output		DC 12V
Battery voltage	Minimum voltage	DC 8V
	Maximum voltage	DC 13.7V
Brake		Electronic brake
Weight		600g
Signal		RS232
Application		Independent type(Brakeless grid-tie)

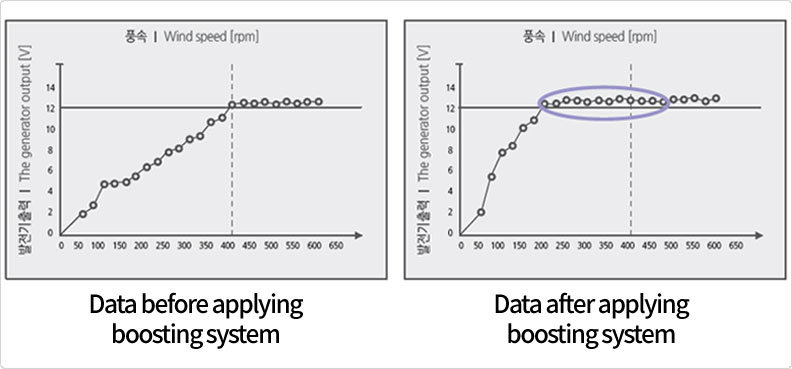

- A stable voltage supply to the voltage step-up to occur in a low wind speed of about 4 times the charge voltage is possile → Battery charging system design and production
- Wind turbine 600W, 400W solar was designed to be used until, designated MPPT (Maximum Power Point Tracking) system to obtain the maximum output
