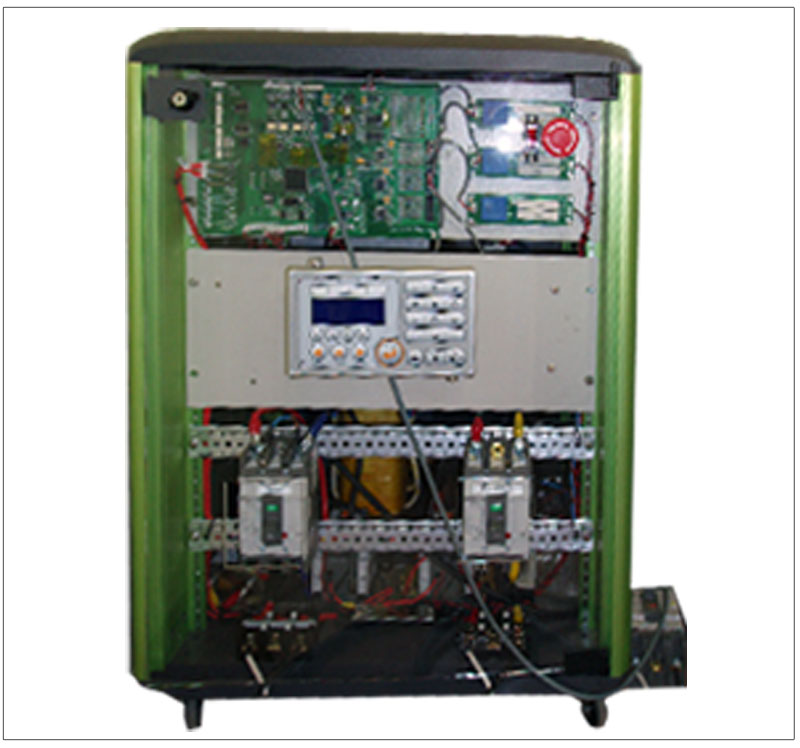

5kW Photovoltaic Inverter
Energy conversion device transforming the solar energy usable for consumer
Technological Specification
| Item | Specification |
| Output power | 5kW / 7.5A |
| Type | Single-phase |
| Input voltage | 125V / 750V |
| MPPT voltage range | 175V - 500V / 400V |
| Efficiency | 95% |
| Power factor | 1 |
| MPPT control number | 2 |
| THD | 3 % |
| Size | 490 / 519 / 185 mm |
| Output voltage | 150V |
Features
- Carried the simulation and field test out to ensure the stability from the excessive
- Direct producing a digital signal processor which is core component of solar power converter
→ Minimize controller price
- Improve efficiency of flagship products → Price, technological competitiveness

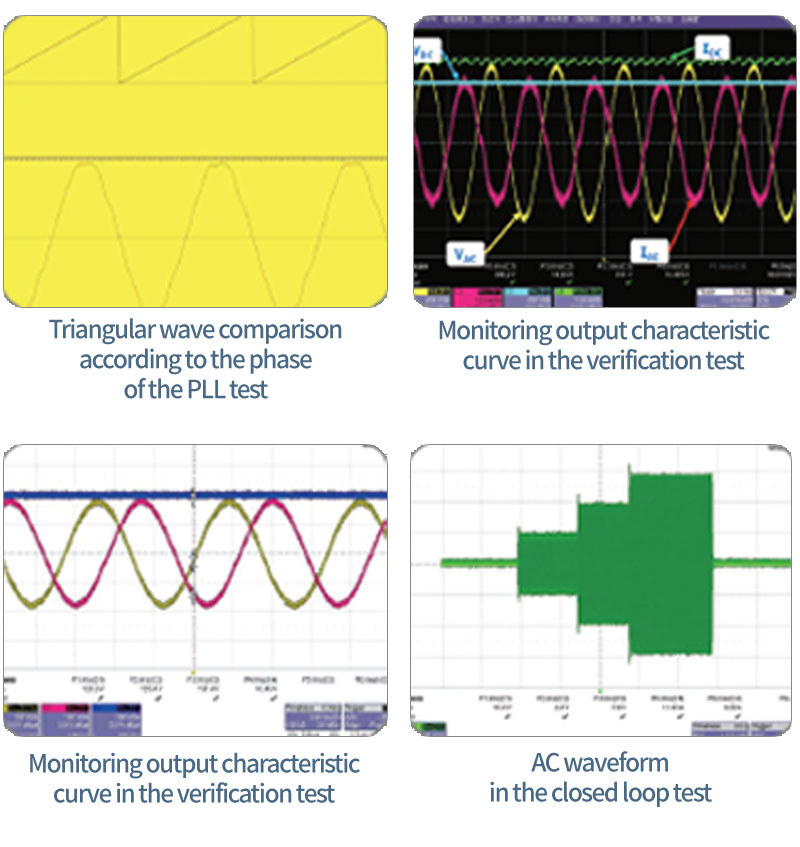

Output Data through the Verification Test

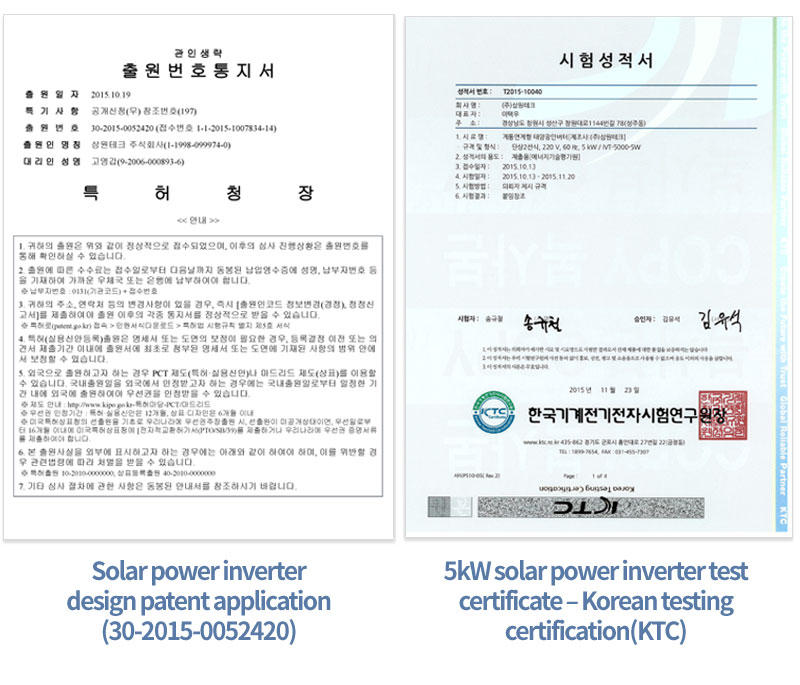

Certificates
