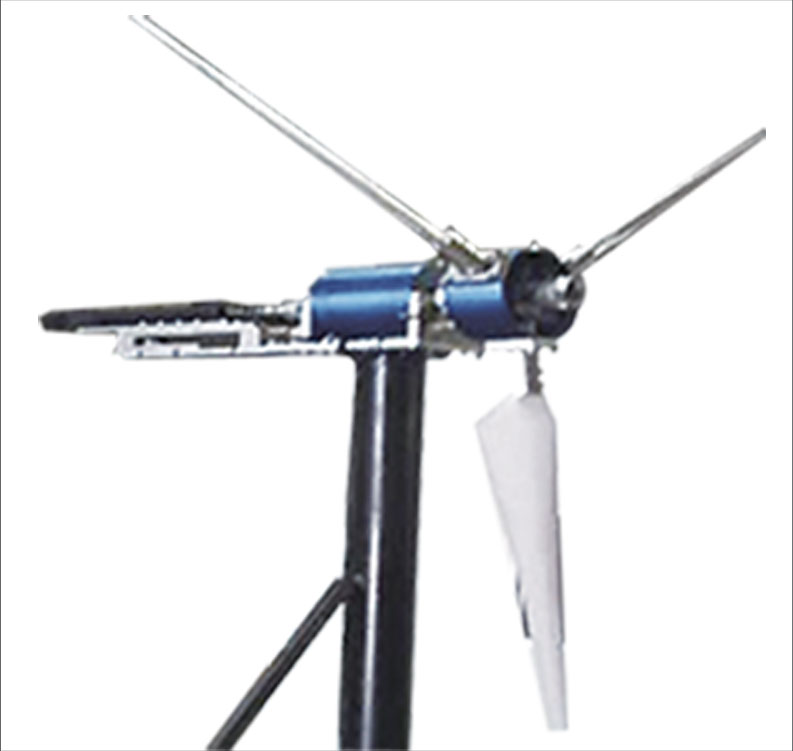

1.5kW Wind Power Generator
Technological Specification
| Item | Specification |
| Rated output | 1.5kW(460rpm) |
| Maneuver wind speed | 4m/s |
| Rated wind speed | 12.7m/s |
| Pitch control error range | ±7° |
| Pitch control angle | 0°~90° |
| Number of blades | 3 |
| Noise level(Rated wind speed) |
Below 78dB |
| Signal | Independent type |
| Monitoring system | Cable data communication(RS232) |
Features
- Blades can be control applying pitch control system
- Produced to secure the optimal generation efficiency
- Designed speed controllably

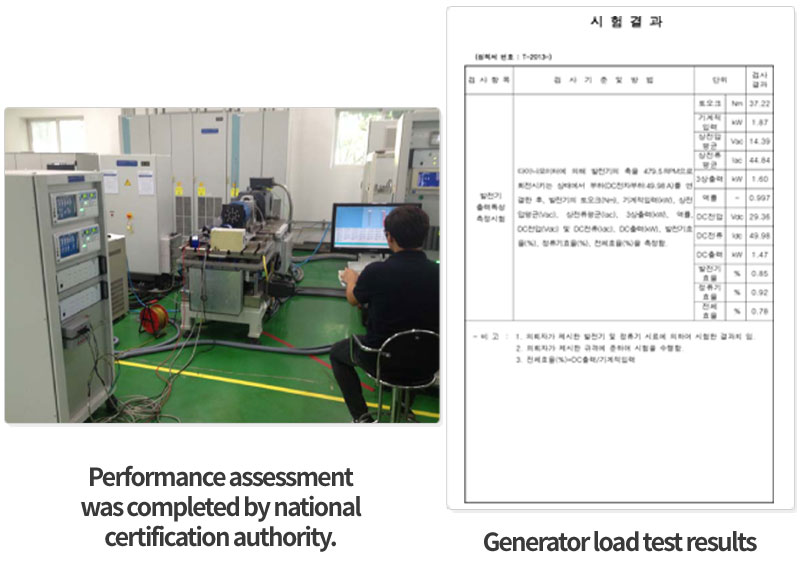

Performance assessment was completed by national certification authority / Generator load test results
