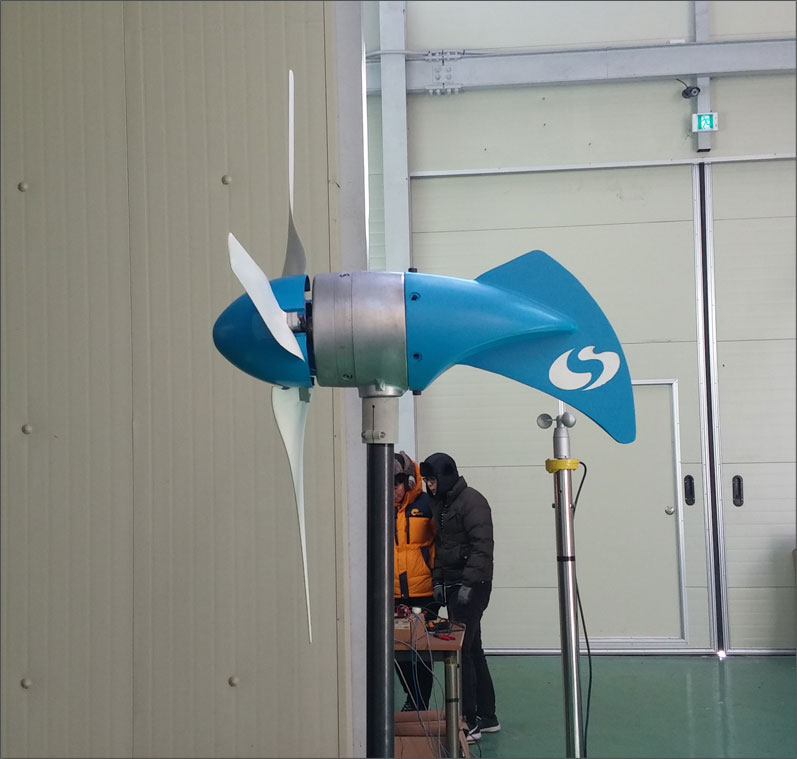

600W WIND POWER GENERATION SYSTEM
Hybrid street lamp and security lamp fitting the climate change and low-carbon green growth policy
Technological Specification
| Item | Specification | |
| Output | Rated power | 600W |
| Rated wind speed | 12.5m/s | |
| Cut-in wind speed | 1.3m/s | |
| Cut-out wind speed | 25m/s | |
| Rotor | Rotor diameter | 0.65M |
| Number of blades | 3 | |
| Blades material | Reinforced plastic | |
| Controller | Brake | Electronic brake |
| Output | DC 12V | |
| Weight | Wind turbine | 8.6kg |
Features
- Ensuring stable generation quantity through adopting electronic brake system
- Ensuring wind speed control and stability applying tail wing-integrated nacelle
- Hybrid streetlights and security lights applicable

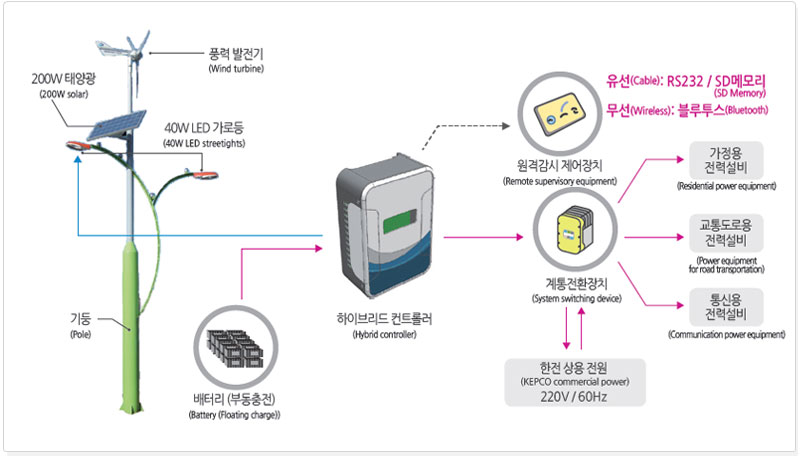

System Schematic Diagram

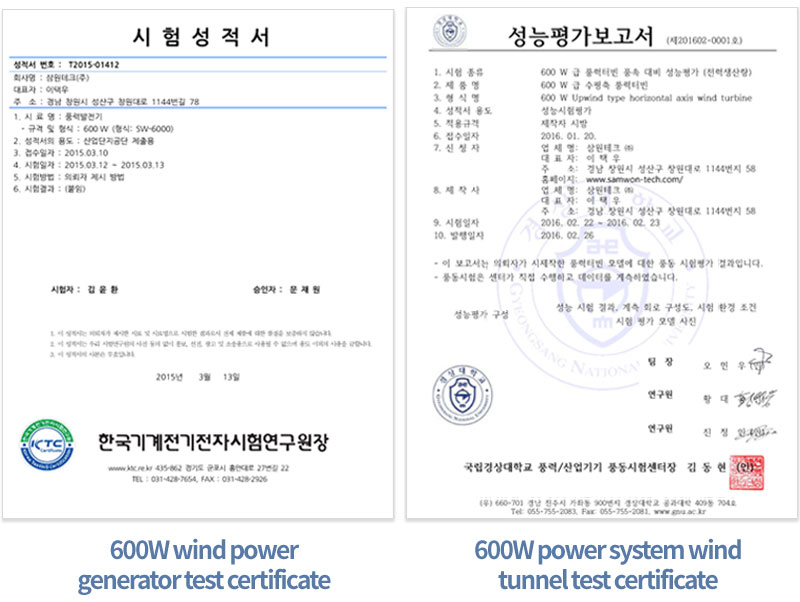

Certificates

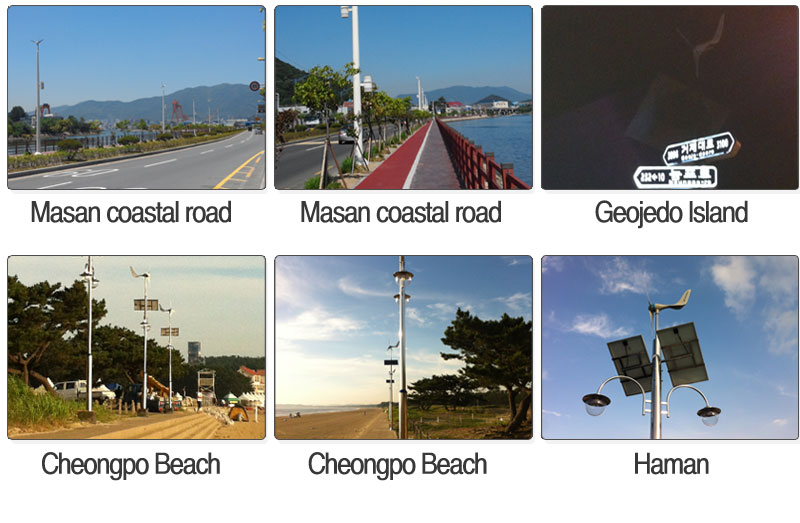

Samples of Installation
