Portable Solar Power Devices

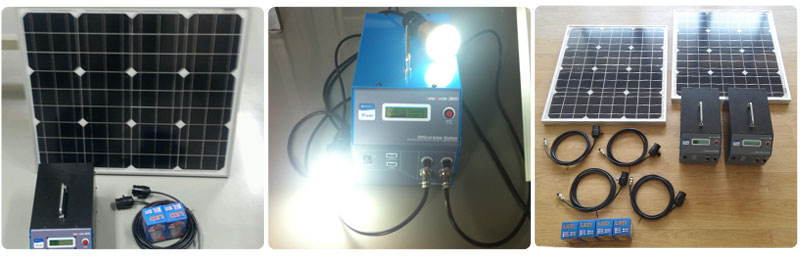

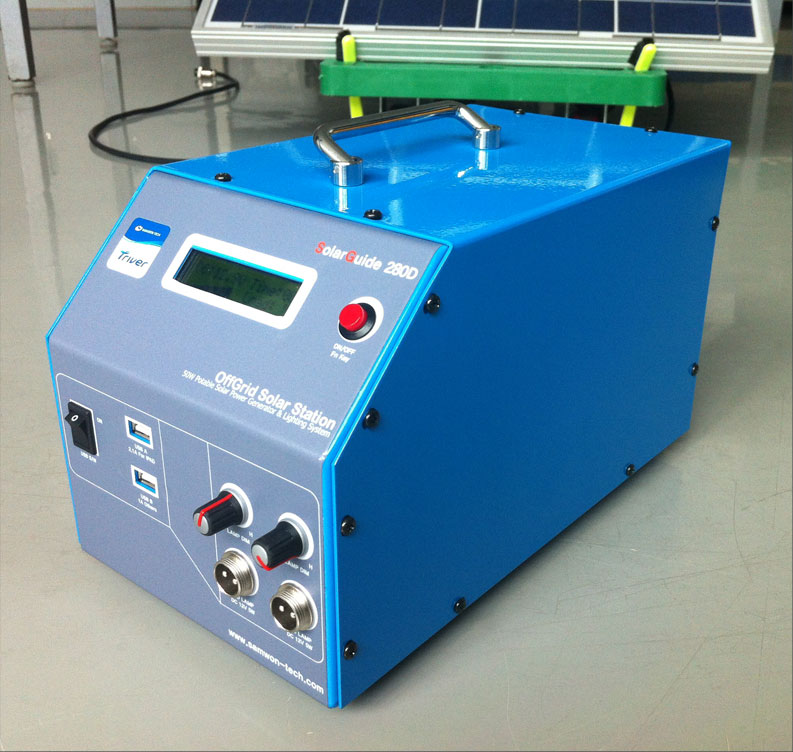

Portable equipment generating with solar energy

Item	Specification
Solar module	500W(17.5V 2.85A)-6hours full charging
Battery	12V 12AH (2EA)
Controller	10A
LED Lamp	12V 5W (2EA)
USB Charging	12V 5W(2EA) 5V 2.1A(Smart pad chargeable)
No load current	≤ 20mA
Over discharge cut-off voltage	10.5V(Battery life extension)
Circuit break current	5A(Overcurrent breaker use)
LED Dimming	1W~5W variable(Useable up to 140hours)
Exterior dimensions	300 X 70 X 180mm [Length X Width X Height]

Features

- Use only 5 days with full charge - Patriarchs 5 days (5W LED bulb 2EA, 5 hours per day/5 days available)
- ED brightness control and constant current LED driver with protection (1 ~ 5W power consumption variable)
- battery voltage, charge status, real-time status can be checked via LCD
- all kinds of smart phones and smart pads chargeable
- charging, and load and discharge, reverse polarity protection, equipment protection and improved battery performance
- the time set by a timer function and timer function automatically recognizes Night ON / OFF automatic
- By using the current circuit breaker, no fuse needed for replacement
