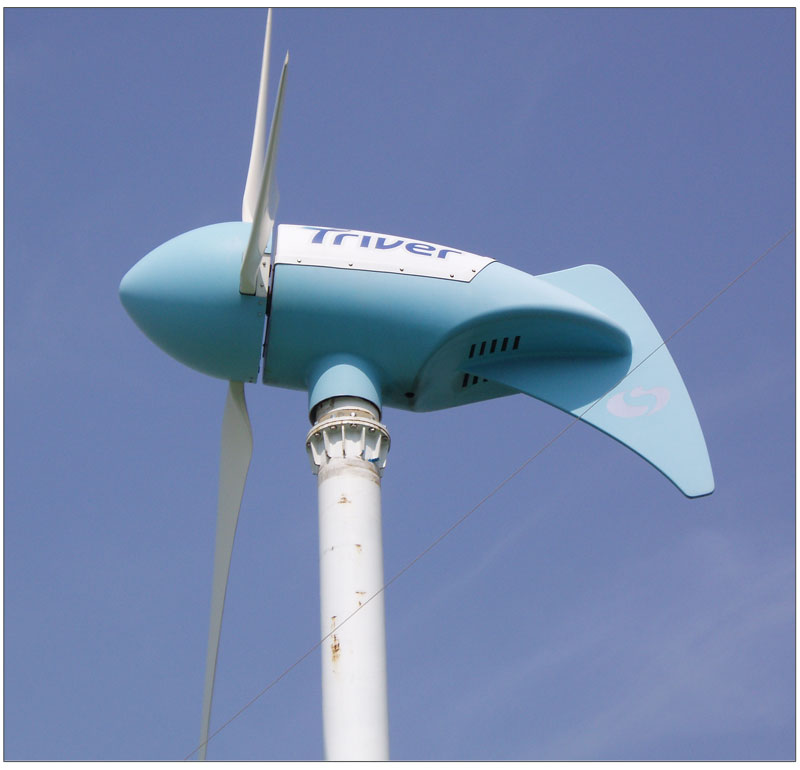

10kW WIND POWER GENERATION SYSTEM
Eco-friendly and high efficiency wind power generator with the enhanced light weight and durability
Technological Specification
| Item | Specification | |
| Output | Rated power | 10kW |
| Rated wind speed | 12m/s | |
| Cut-in wind speed | 2.5m/s | |
| Cut-out wind speed | 25m/s | |
| Rotor | Rotor diameter | 6M |
| Number of blades | 3 | |
| Blades material | Reinforced glass fiber | |
| Controller | Brake | Hydraulic & Electronic |
| Output | DC 48V | |
| Weight | Wind turbine | 320kg |
Features
- Applying the step-up system capable of ensuring the power generation amount in the low velocity (2.5m/s)
- Localization of wind power generator key components
- Designing and fabricating coreless generator
- Structural analyzing and fabricating Blade & HUB
- Developing wind power generation monitoring system
- Have below 20kW class wind power generation system field test Lab

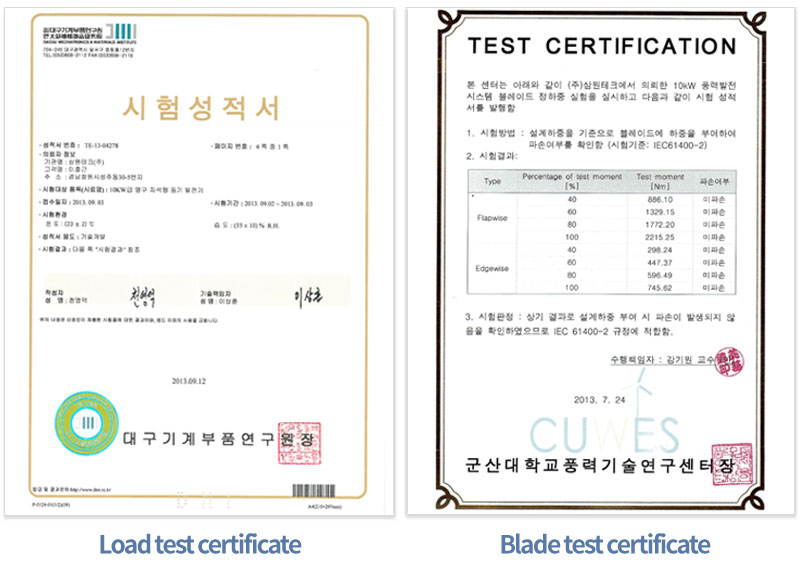

Certificates

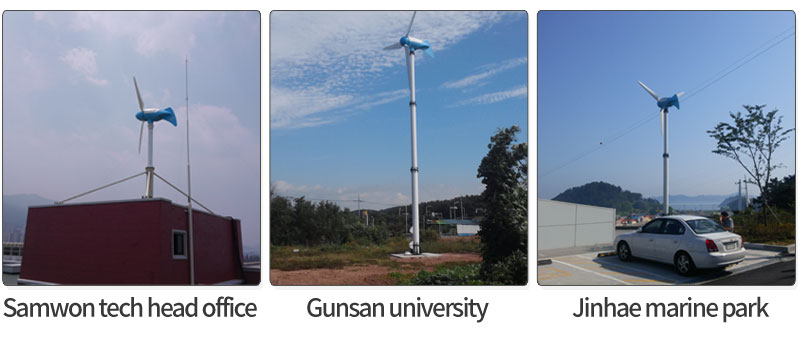

Samples of Installation
