Engineering Reference DATA

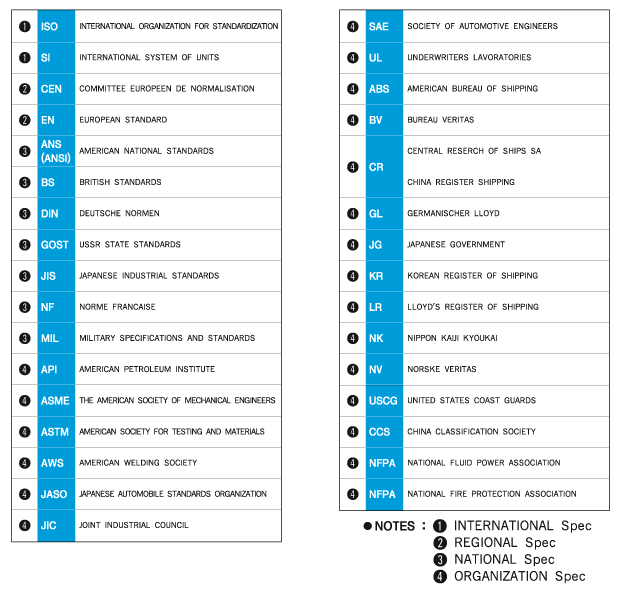

RELATIVE INTERATIONAL SPEC INDEX

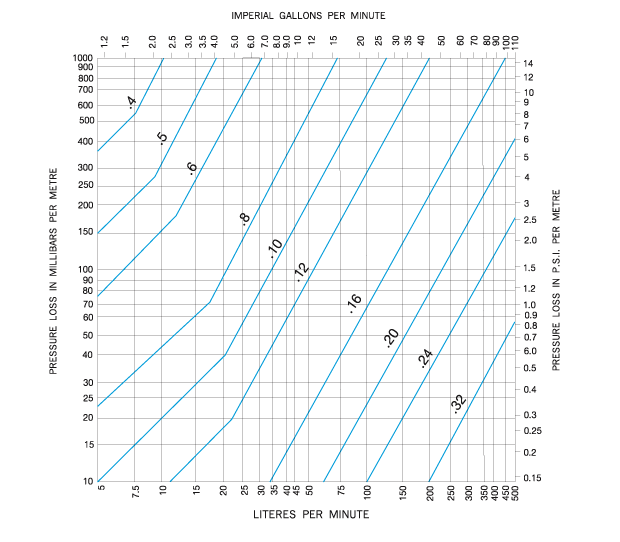

HOSE PRESSURE DROP

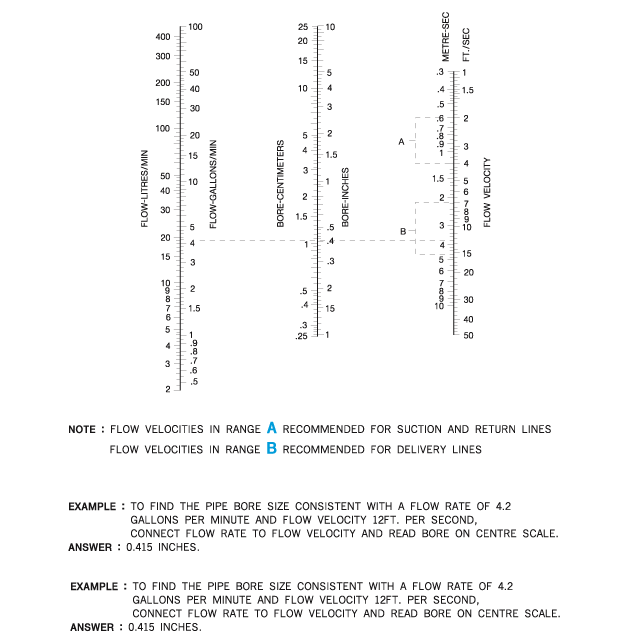

PIPE SIZING NOMOGRAM

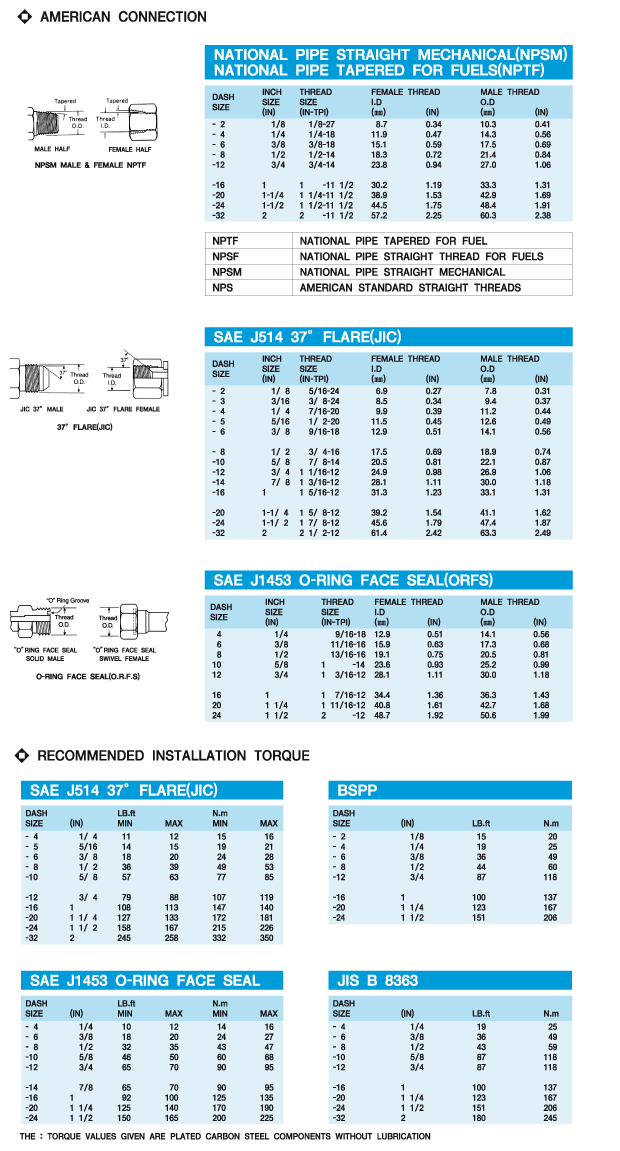

THREAD IDENTITICATION

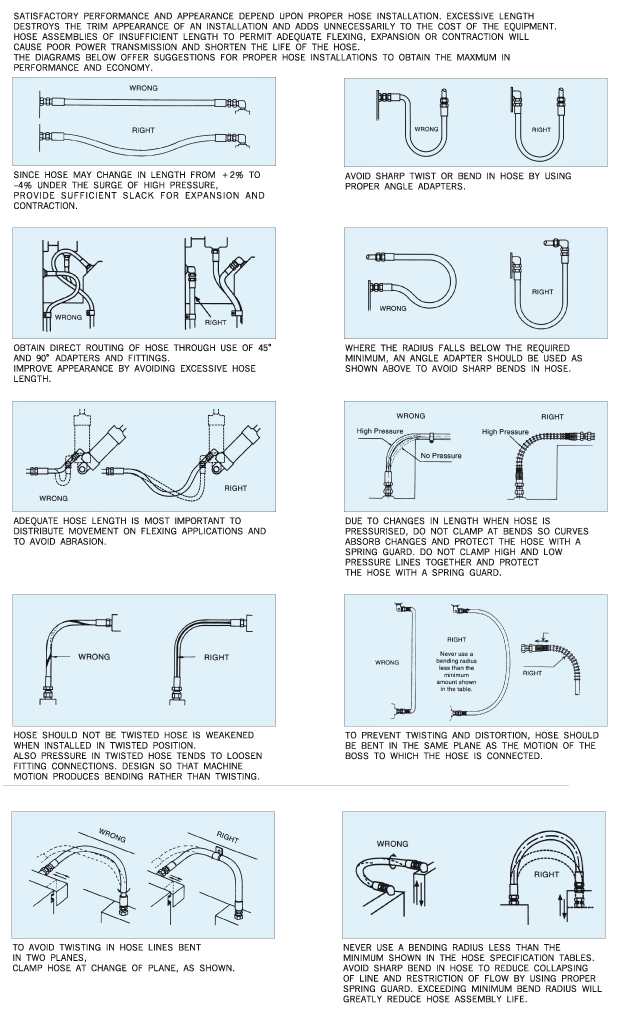

CORRECT HOSE ASSEMBLY INSTALLATION

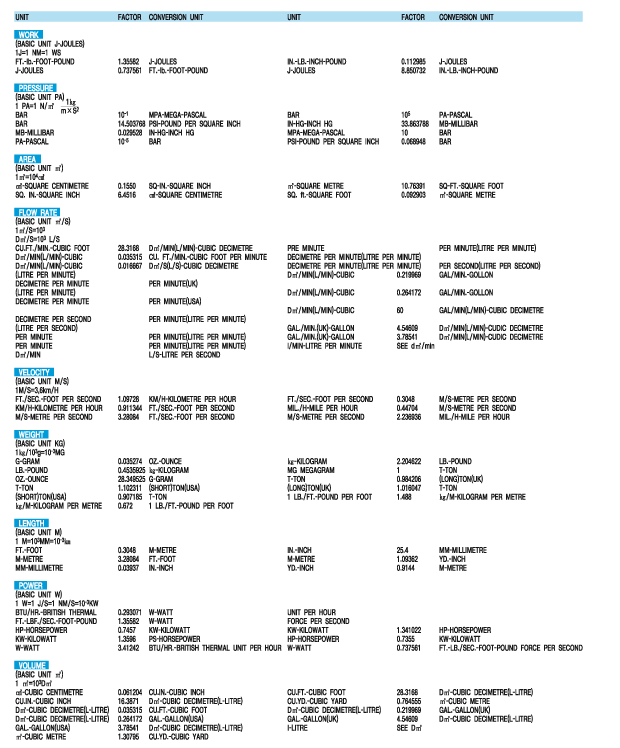

CONVERSION FACTORS

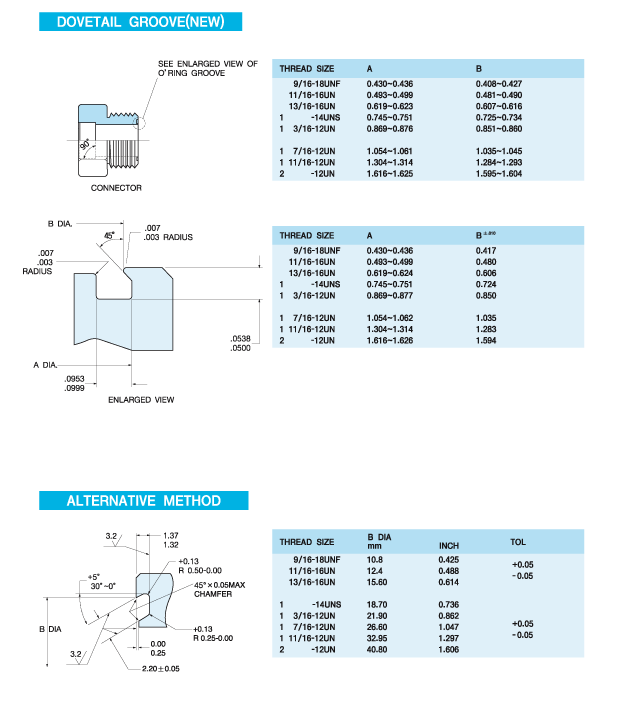

NEW O,R,F,S GROOVE(DOVETAIL)DIMENSION TABLE

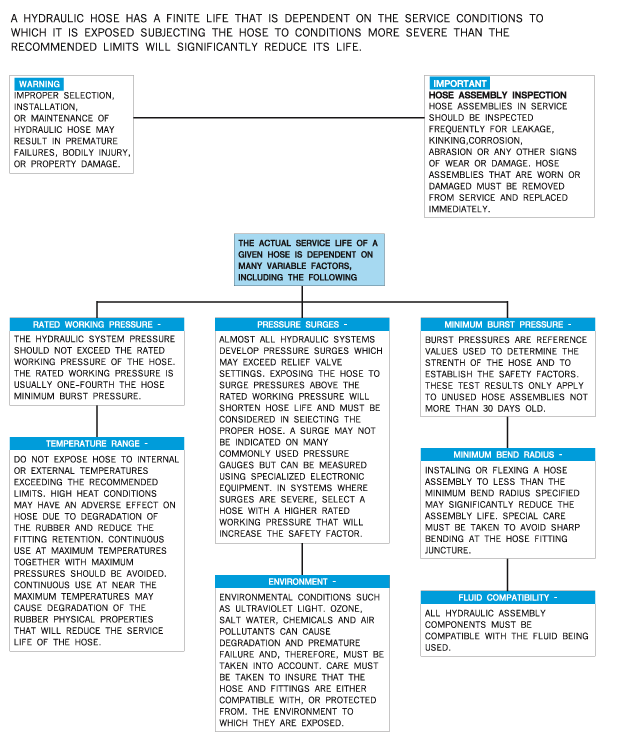

HOSE SERVICE LIFE FACTORS

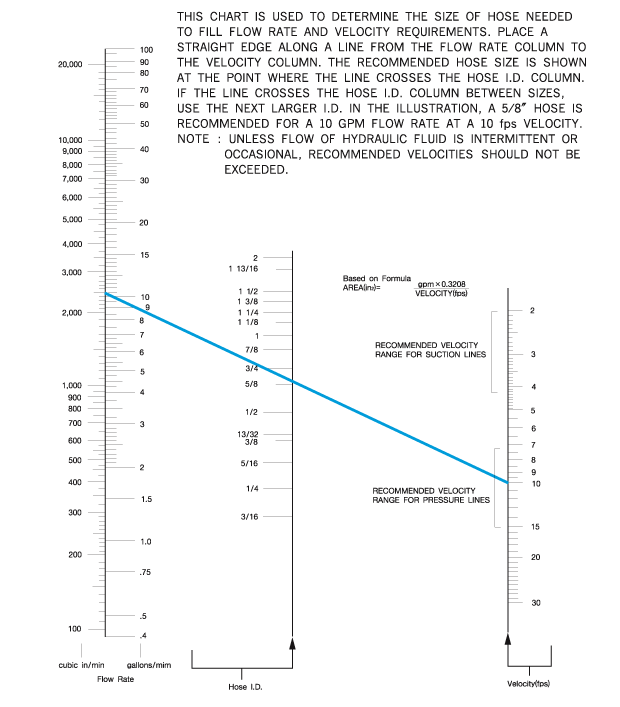

SELECTION HOSE I.D FLOW & VELOCITY

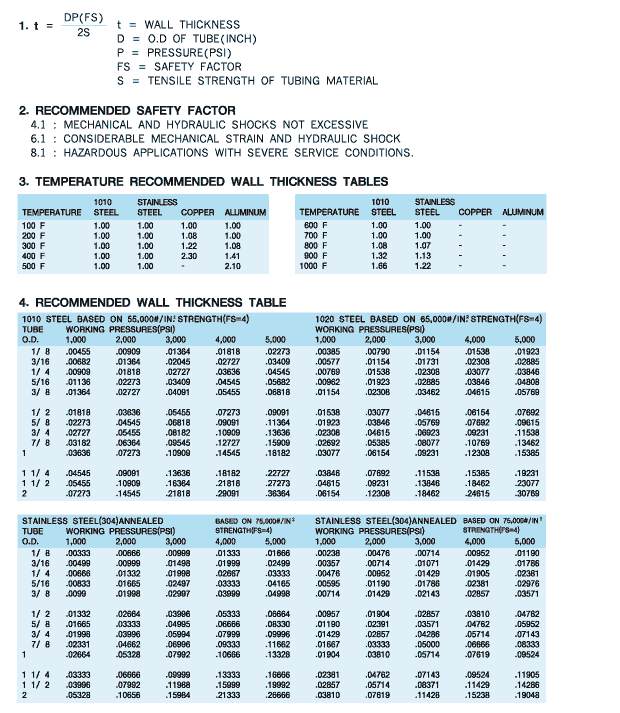

TUBING SELECTION(WALL THICKNESS)

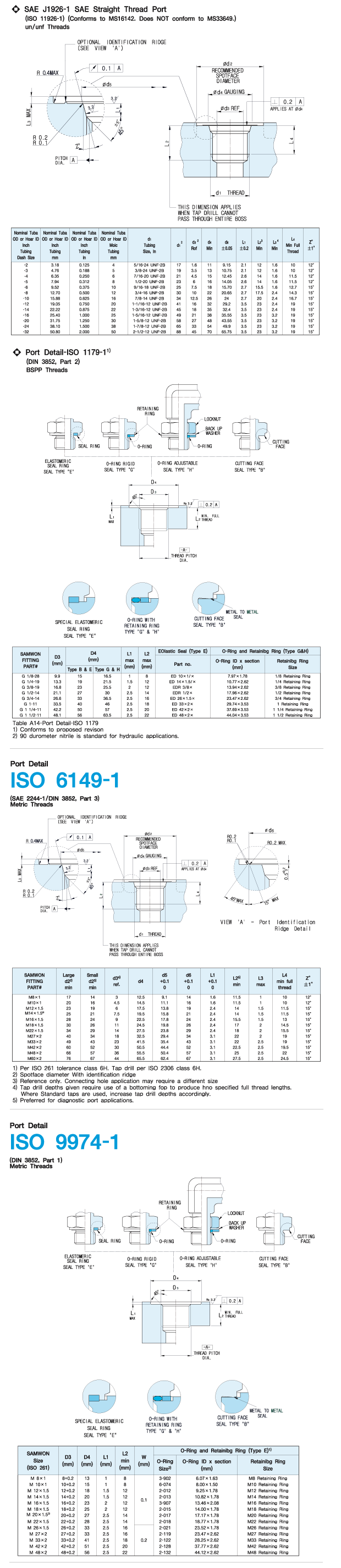

O-RING PORT DETAIL(DF & UNF)

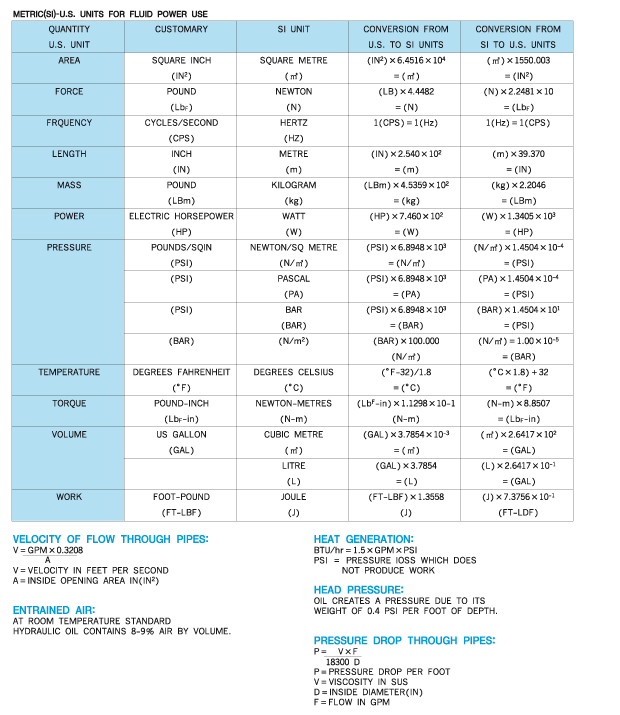

FOMULAS & COMVERSION FACTORS FOR FLUID POWER USE

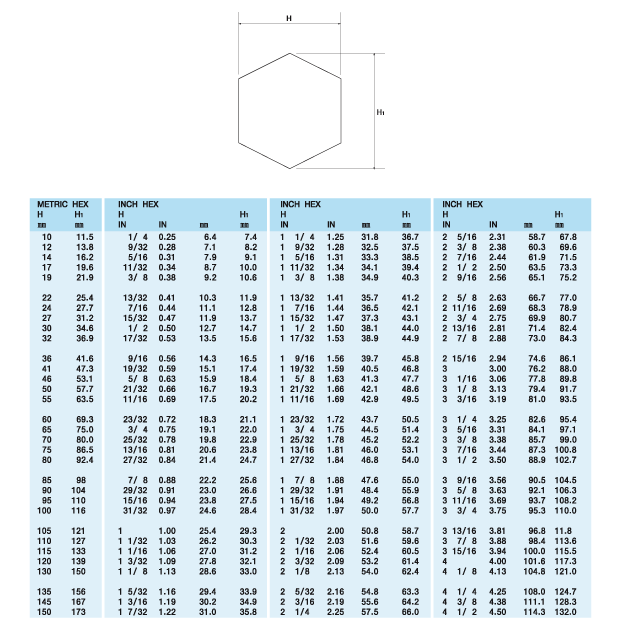

HEXAGON ACORSS CORNER DIMENSION (INCH & MM)
