HOME > Fitting事业部 > 产品简介 > Engineering Reference DATA
Engineering Reference DATA
RELATIVE INTERATIONAL SPEC INDEX

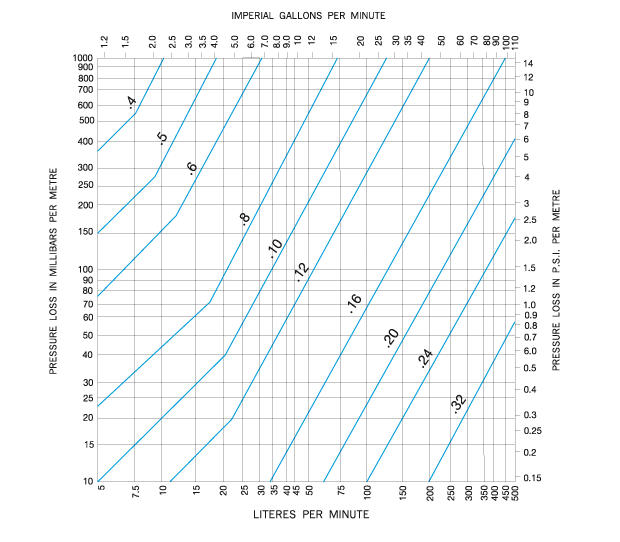

HOSE PRESSURE DROP

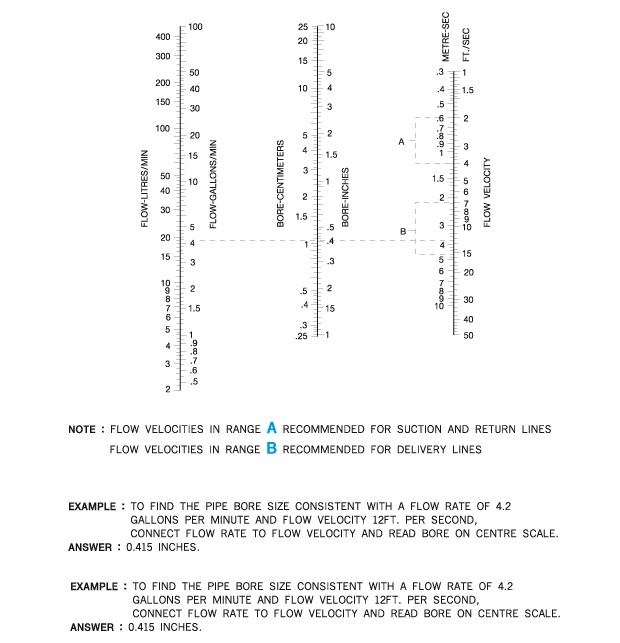

PIPE SIZING NOMOGRAM

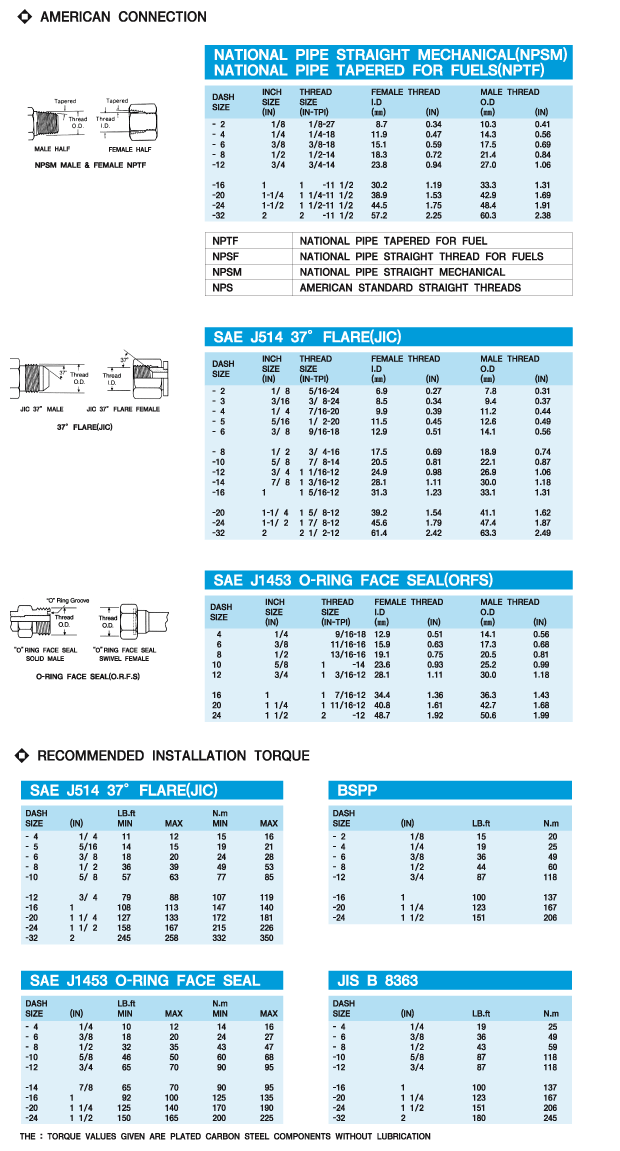

THREAD IDENTITICATION

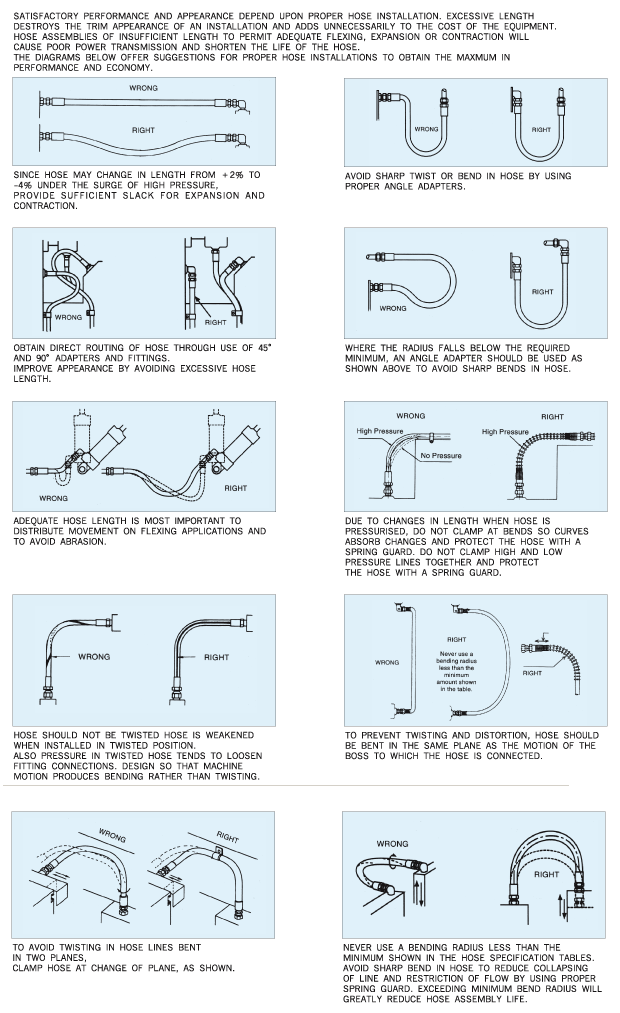

CORRECT HOSE ASSEMBLY INSTALLATION

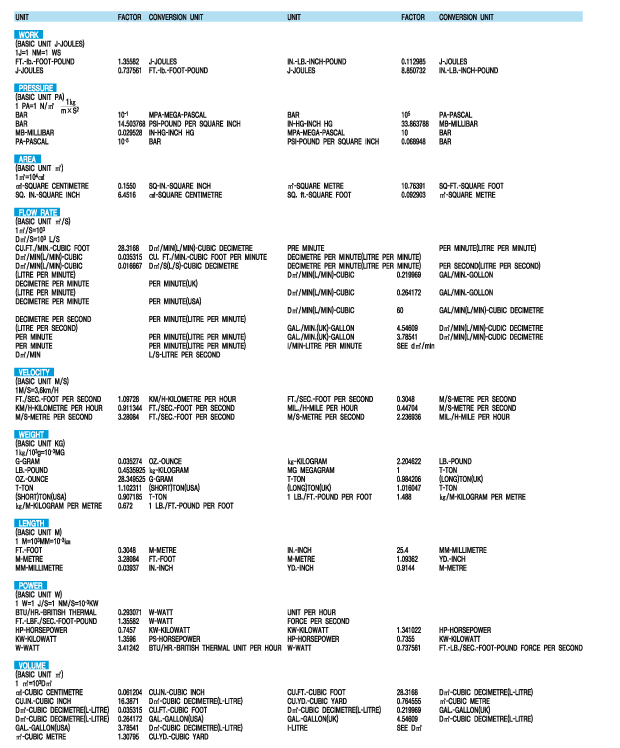

CONVERSION FACTORS
NEW O,R,F,S GROOVE(DOVETAIL)DIMENSION TABLE
HOSE SERVICE LIFE FACTORS
SELECTION HOSE I.D FLOW & VELOCITY
TUBING SELECTION(WALL THICKNESS)

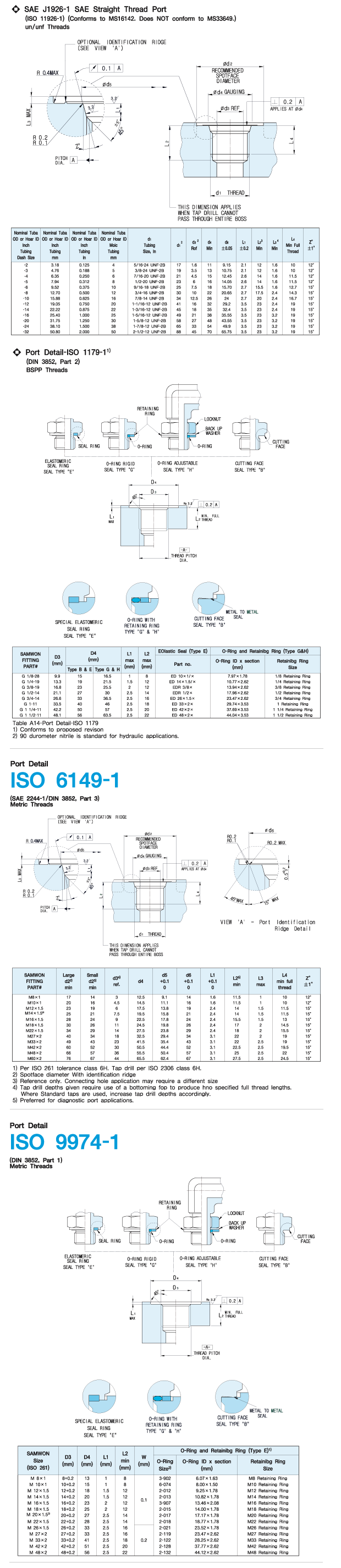

O-RING PORT DETAIL(DF & UNF)

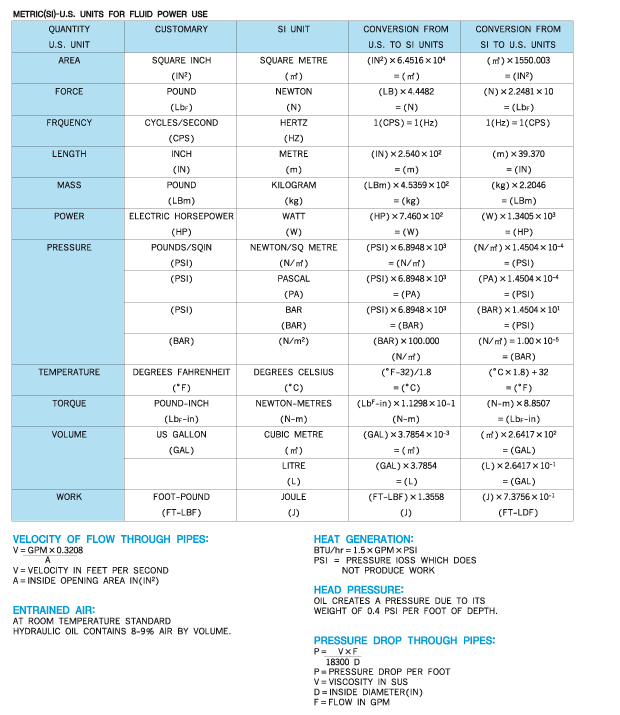

FOMULAS & COMVERSION FACTORS FOR FLUID POWER USE

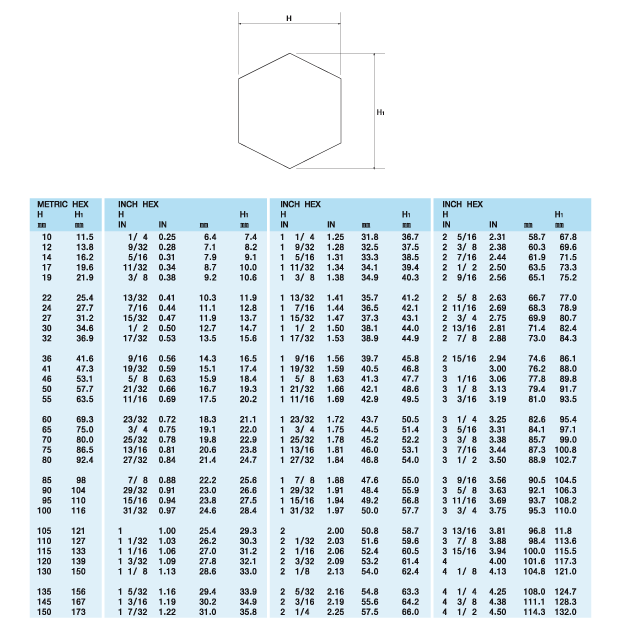

HEXAGON ACORSS CORNER DIMENSION (INCH & MM)
| 1 |
