Engineering Reference DATA
RELATIVE INTERATIONAL SPEC INDEX

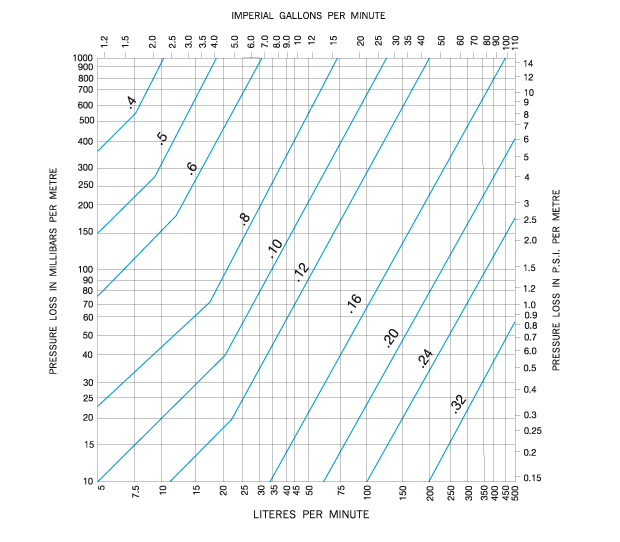

HOSE PRESSURE DROP

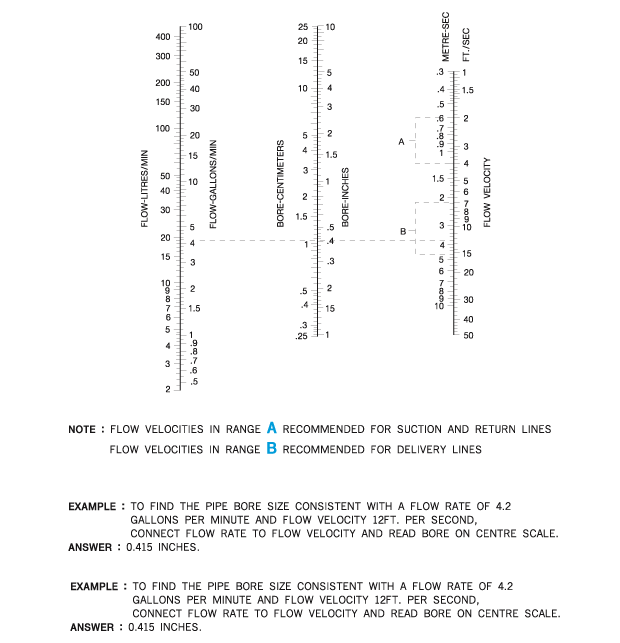

PIPE SIZING NOMOGRAM
THREAD IDENTITICATION
CORRECT HOSE ASSEMBLY INSTALLATION

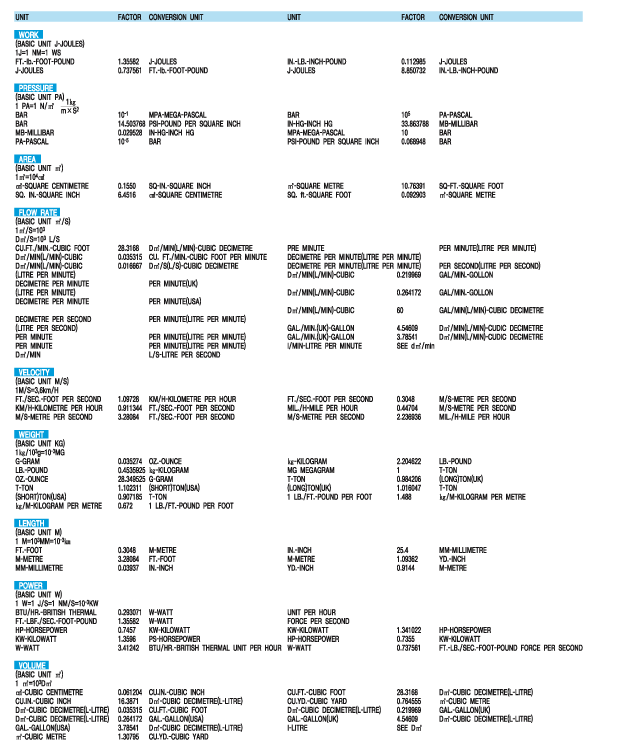

CONVERSION FACTORS

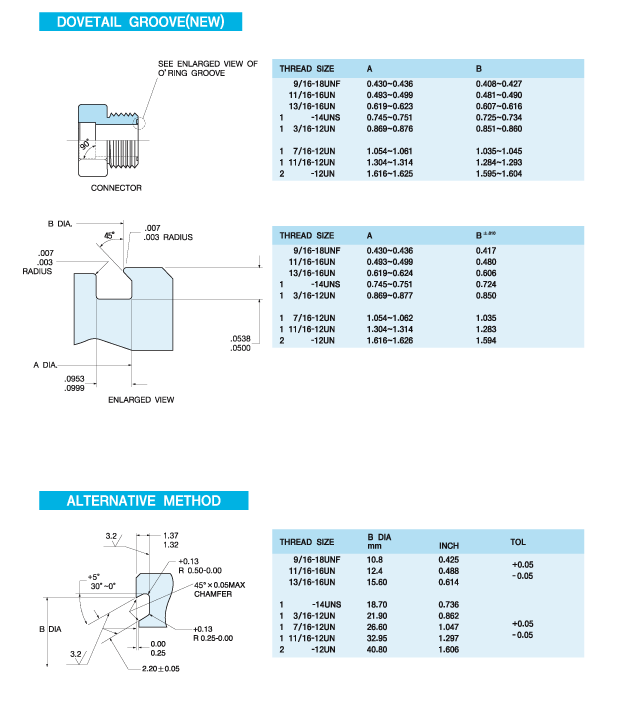

NEW O,R,F,S GROOVE(DOVETAIL)DIMENSION TABLE
HOSE SERVICE LIFE FACTORS

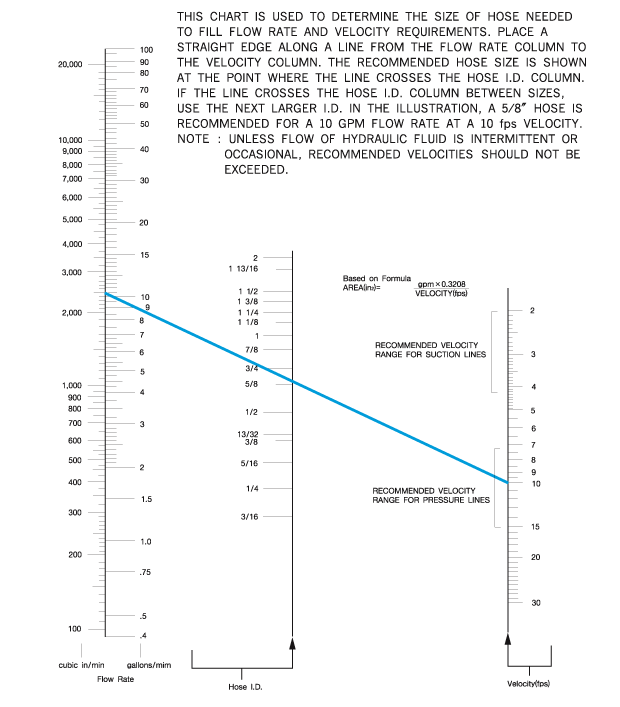

SELECTION HOSE I.D FLOW & VELOCITY

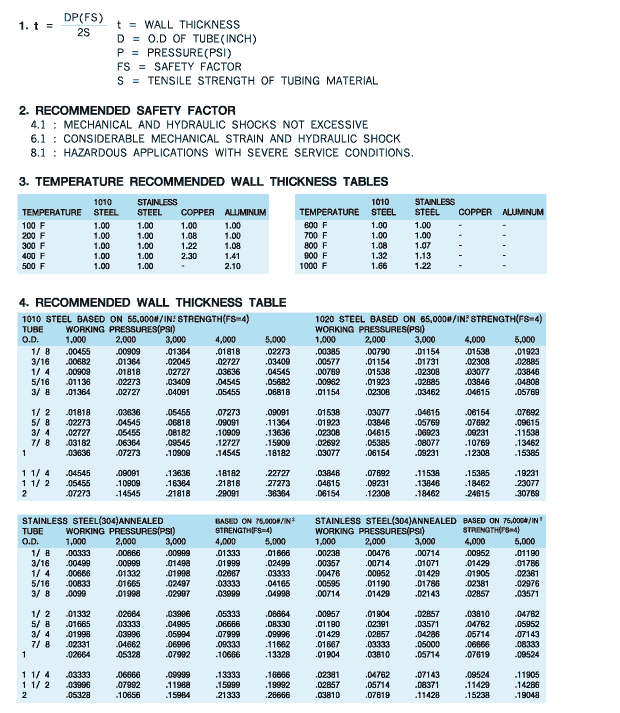

TUBING SELECTION(WALL THICKNESS)

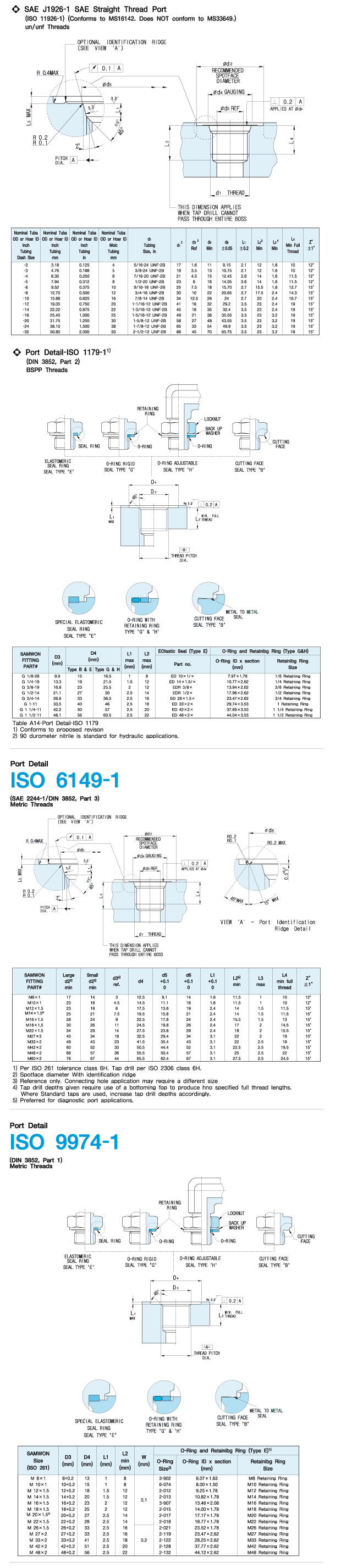

O-RING PORT DETAIL(DF & UNF)

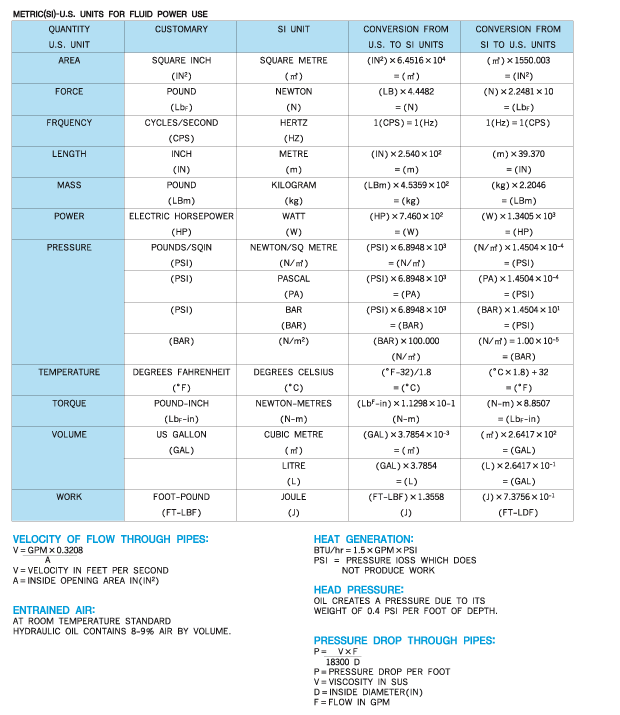

FOMULAS & COMVERSION FACTORS FOR FLUID POWER USE
HEXAGON ACORSS CORNER DIMENSION (INCH & MM)
